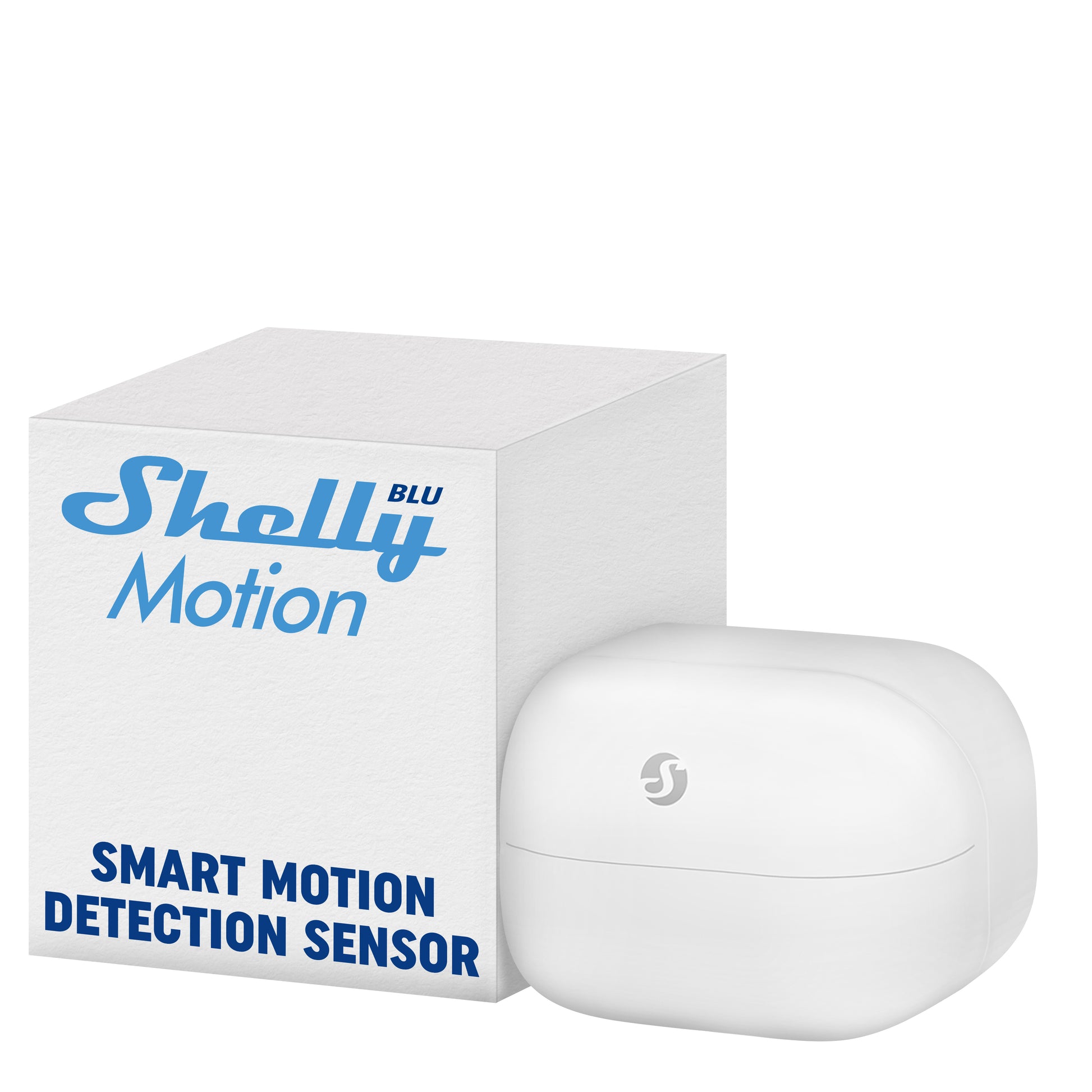

Shelly BLU Motion
Shelly BLU Motion
Low stock
A motion sensor with fast response and long battery life. Get real-time alerts whenever motion is detected, while the durable battery ensures reliable performance over time.
*Requires a gateway to work with the Shelly Smart Control app. Compatible with Shelly BLU Gateway or any Shelly Plus, Pro, or Gen3 device (excluding sensors).
Couldn't load pickup availability
Technical details
Technical details
Device identification
Name: ShellyBLU Motion
Model: SBMO-003Z
Device SSID: –
BLE Model ID: –
Short description
ShellyBLU Motion is a smart Bluetooth motion sensor with a built-in lux meter.
It offers long battery life and supports regular, encrypted, and beacon operating modes
for flexible automation scenarios.
Main features
- Long battery life
- Motion detection with lux measurement
- Beacon mode
- Encrypted mode
Use cases
- Residential: Motion-based lighting and automation
- MDU: Apartments, condominiums, hotels
- Light commercial: Offices, retail, restaurants, gas stations
- Government/municipal: Facility automation and security
- University/college: Classroom, dorm, and hallway automation
Device electrical interfaces
Battery-powered (internal, replaceable)
Connectivity
Bluetooth
Safety function
Not applicable
Supported load types
- Not applicable (sensor device)
User interface
Inputs: One push button (behind back cover)
• Hold 10s → pair with Bluetooth device
• Hold 30s → factory reset (only shortly after inserting battery)
• Double-press → test mode (for 1 min: every motion triggers broadcast + red flash)
Modes of operation
Regular mode: Broadcasts motion status, illuminance, and battery level whenever motion status changes (detected/cleared). Blind time adjustable via Shelly Smart Control app.
Beacon mode: Broadcasts motion status, illuminance, and battery level every 30s.
Enable in Shelly Smart Control app. Battery life may be reduced in this mode.
Specifications
Specifications
Physical

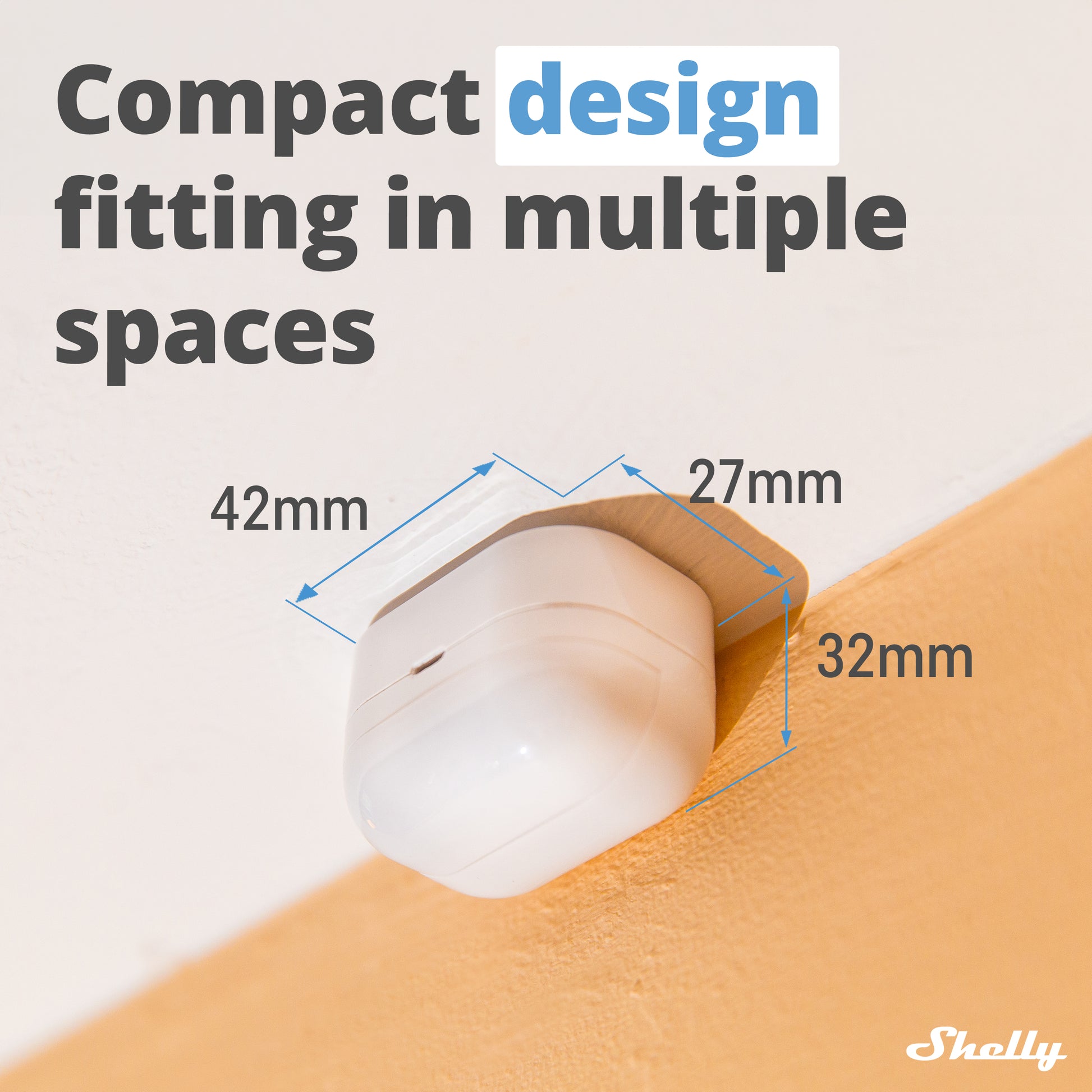

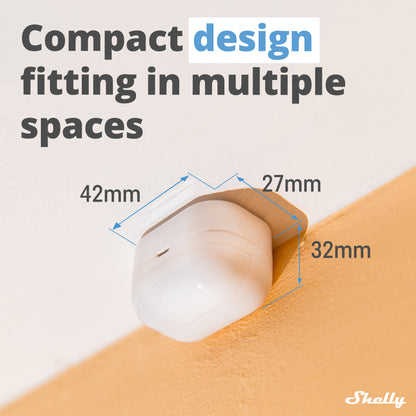

Size (HxWxD): 32×42×27 mm ±0.5 / 1.26×1.65×1.06 in ±0.02
Weight: 26 ±1 g / 0.92 ±0.05 oz (device with battery)
Shell material: Plastic
Color: White
Environmental
Ambient temperature: −20 °C to 40 °C (−5 °F to 105 °F)
Humidity: 30–70% RH
Electrical

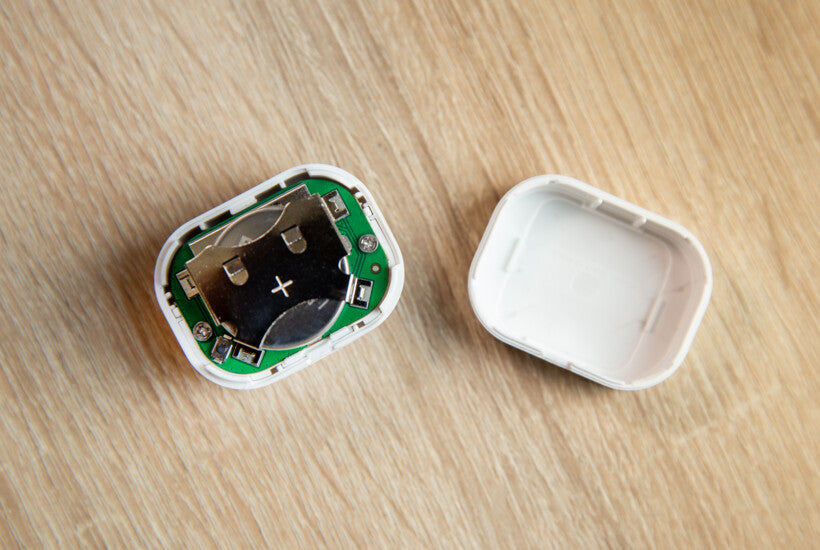

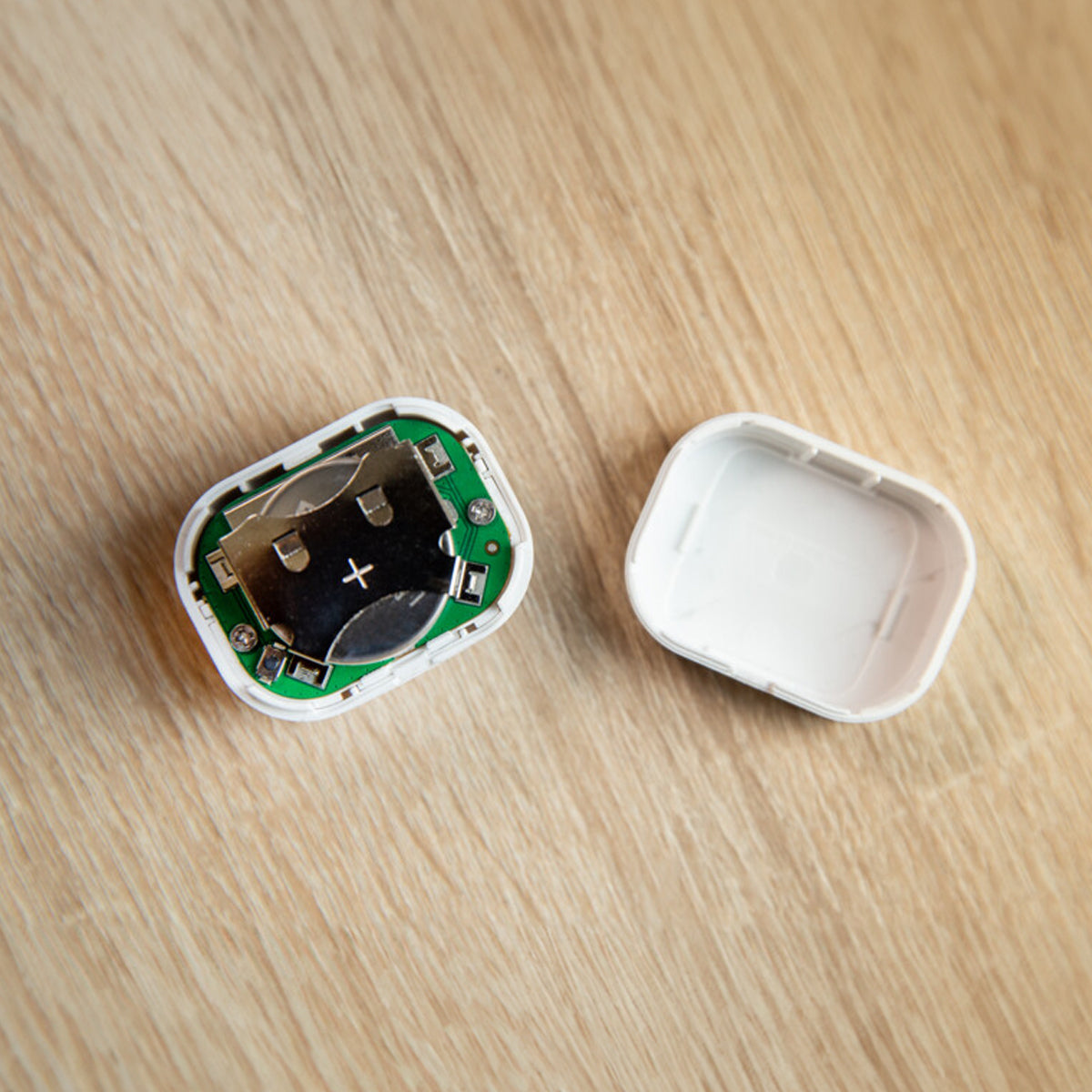

Power supply: 1× 3 V CR2477 battery (included)
Battery life: Up to 5 years
Sensors
PIR: Yes
Light sensor: Yes
Radio
RF band: 2400–2483.5 MHz
Max RF power: < 4 dBm
Bluetooth protocol: 4.2

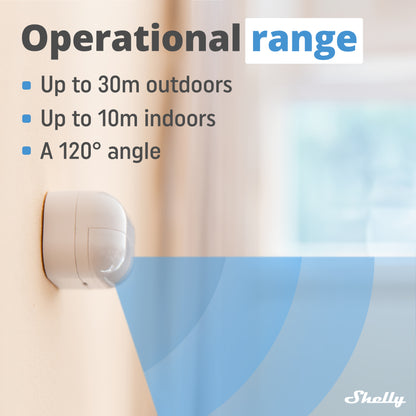

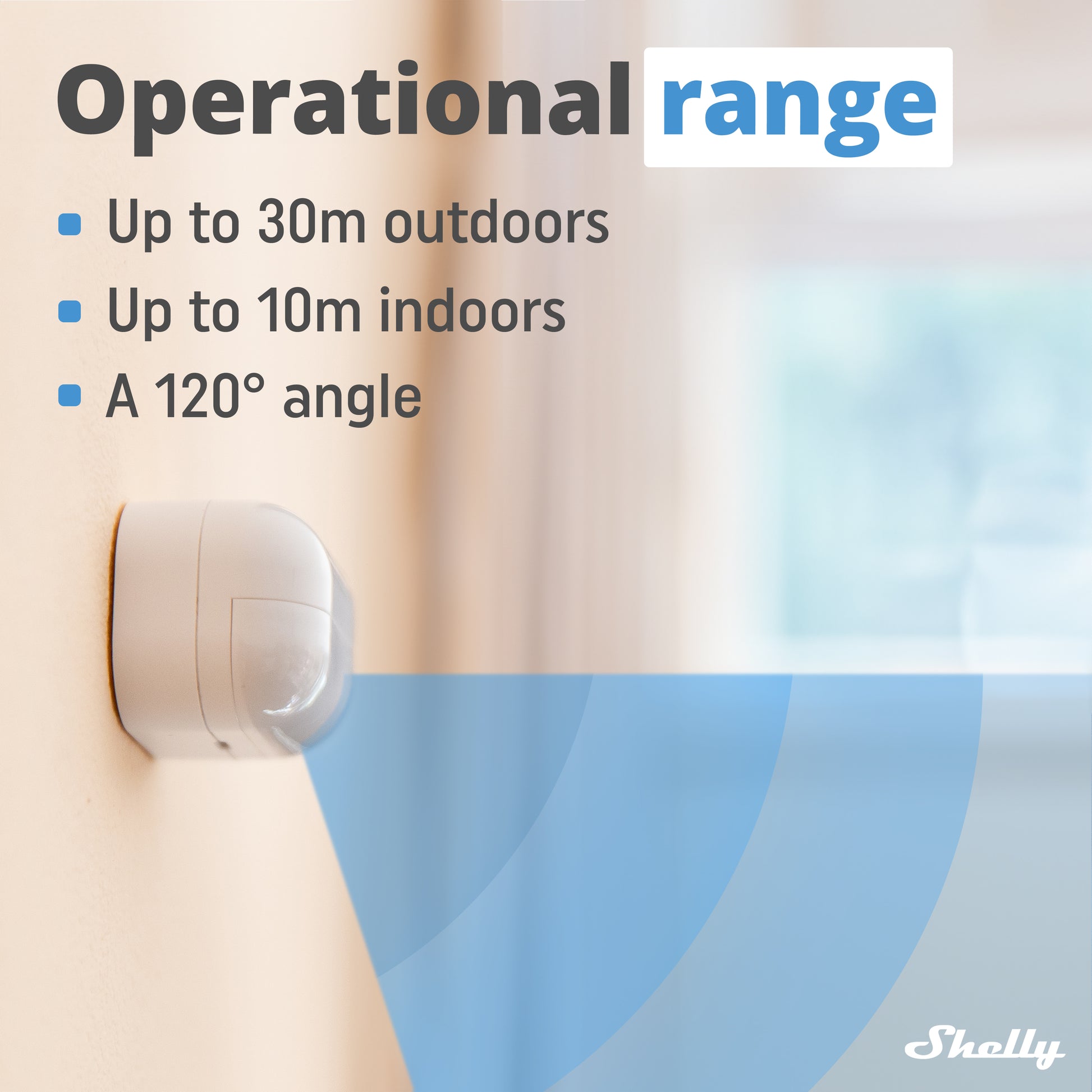

Bluetooth range: Up to 10 m / 33 ft indoors; 30 m / 100 ft outdoors (depends on conditions)
MCU
CPU: EFR32BG22C222F352GM32
Firmware capabilities
Encryption: AES (CCM mode)
Beacon mode: Yes
