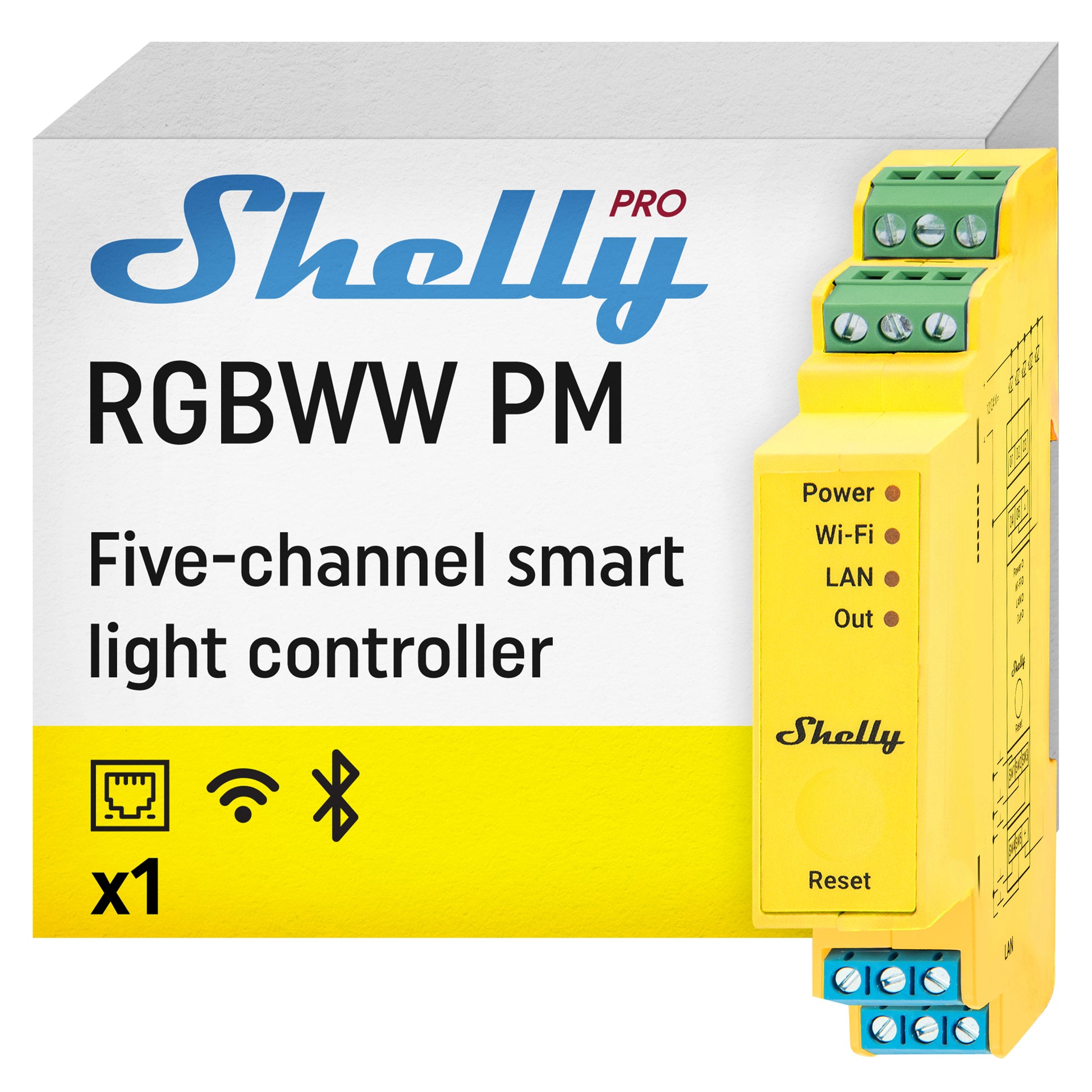

Shelly Pro RGBWW PM

Device identification

Name: Shelly Pro RGBWW PM

Model: SPDC-0D5PE16EU

Device SSID: ShellyProRGBWWPM-XXXXXXXXXXXX

BLE Model ID: 0x2012

Short description

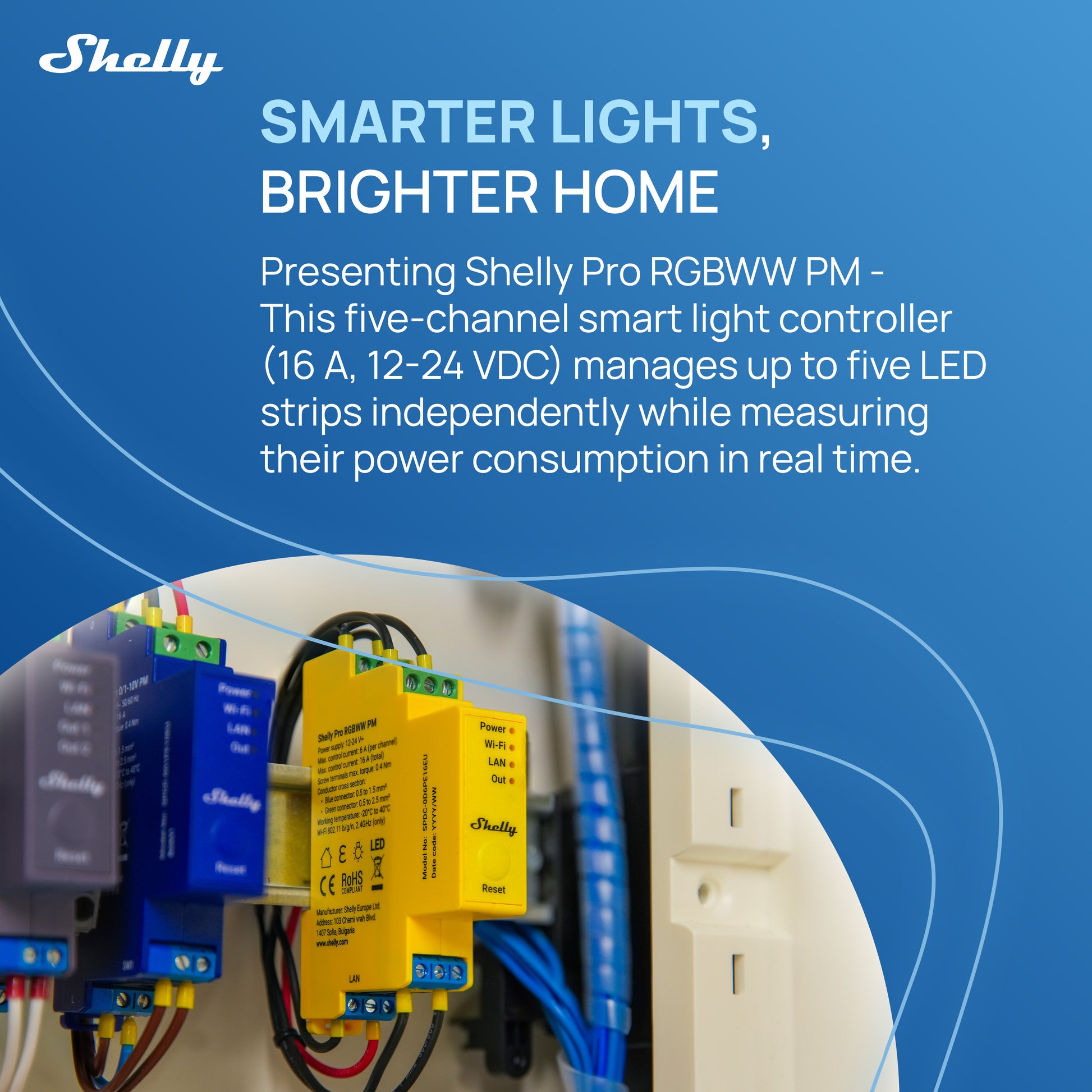

Shelly Pro RGBWW PM is a DIN-rail mountable, five-channel smart light controller with 5 inputs
(button, switch, or analog) and 5 outputs. Commonly used with LED strips, it supports multiple profiles:
RGB & CCT (default), CCT × 2, RGB + 2 lights, and 5 independent lights. In Lights × 5 mode,
each output can be controlled independently. Built-in power measurement enables real-time tracking of
voltage, current, and power consumption. The device can operate standalone on Wi-Fi or through cloud
automation, with full access via its embedded Web Interface.

Main features

• DIN rail mountable
• Multiple profiles: RGB & CCT, CCT × 2, RGB + 2 lights, Lights × 5
• Independent output control in Lights × 5 profile
• Power measurement for energy monitoring
• Bluetooth connectivity
• BLE Gateway for bridging BLE and Wi-Fi devices
• Wi-Fi connectivity and range extender
• Ethernet connectivity
• Scripting for advanced automation
• Basic and Advanced Schedules (daily to yearly granularity)
• Auto on/off timers
• Local actions within LAN
• Webhooks for event-driven automation
• Compatible with third-party systems (KNX, Home Assistant, Alexa, Google, SmartThings)
• No hub required (works with Shelly Smart Control or 3rd-party)
• Activity log with detailed history
• KVS (Key-value storage)
• Dynamic components created by user
• Night Mode with forced brightness setting
• Default values: 50% brightness, RGB (255,255,255), 4600K
• Switch/Button/Analog input modes
• Profile-specific input mappings (CCT × 2, RGB+CCT, RGB+2 lights, Lights × 5)
• One- and dual-button dimming control
• Transition duration for brightness/color changes
• Min brightness on toggle On (default 3%)
• Min/Max brightness and color temperature ranges
• Button fade rate control
• Button presets (double-click actions, defaults: 100% brightness, RGB 255,255,255, 4600K)
• Safety protections: over current, voltage, and power

Use cases

• Power monitoring: Real-time consumption tracking
• RGBCCT or multi-light control: One RGBCCT setup or 5 independent LED strips
• Wake-up and sleep routines: Simulate sunrise/sunset with gradual color/brightness changes
• Child-friendly night lights: Create soothing color scenes for bedtime
• Seasonal/entertainment lighting: Holiday colors, parties, or mood scenes
• Smart presence simulation: Randomized schedules for security
• Retail/commercial displays: Highlight products with dynamic lighting
• Third-party integrations: Works with Home Assistant, Alexa, Google, SmartThings
• Dynamic art installations: Add interactive, color-rich lighting effects

Main applications

• Residential
• MDU (apartments, condos, hotels)
• Light commercial (offices, shops, restaurants, gas stations)
• Government/municipal
• University/college
• Farming

Integrations

Amazon Alexa supported capabilities: Yes

Google Smart Home supported traits: Yes

Samsung SmartThings supported capabilities: Yes

Simplified internal schematics


Device electrical interfaces

Inputs: 5 switch/button inputs (SW1–SW5); 2 power supply inputs (1 GND, 1 DC)

Outputs: 5 outputs (O1–O5)

Ethernet port: 1 RJ45 connector

Add-on interface: Shelly proprietary serial interface

⚠ CAUTION! Plug/unplug the LAN cable only when the device is powered off. The LAN connector must not expose metallic touch points.

⚠ CAUTION! High voltage present on the add-on interface when powered.

Connectivity

Wi-Fi

Ethernet

Bluetooth

Safety function

Overheating protection

Overvoltage protection

Overcurrent protection

Overpower protection

Supported load types

• Incandescent
• LED
• CFL

User interface

Inputs: One Control button

• Hold 5s → enable AP and Bluetooth

• Hold 10s → factory reset

Outputs: LED indication (monocolor)

• AP enabled, Wi-Fi disabled → 1s ON / 1s OFF

• Wi-Fi enabled, not connected → 1s ON / 3s OFF

• Wi-Fi connected → Constant ON

• Cloud enabled, not connected → 1s ON / 5s OFF

• Connected to Shelly Cloud → Constant ON

• OTA update → 0.5s ON / 0.5s OFF

• Button held 5s → 0.5s ON / 0.5s OFF

• Button held 10s → 0.25s ON / 0.25s OFF

States are prioritized: each new state cancels the previous one.

Físico

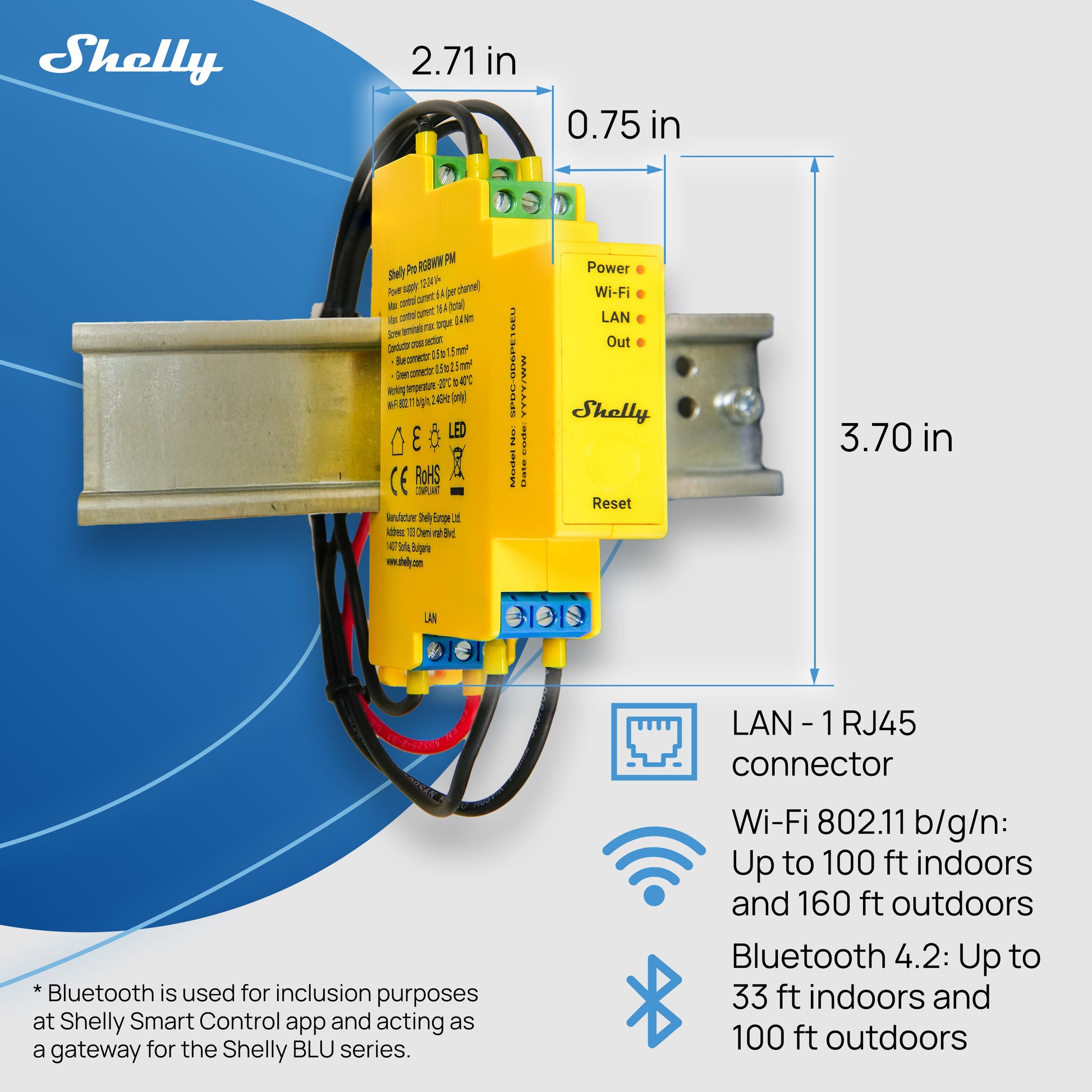

Tamaño (alto x ancho x profundidad):94×19×69 mm ±0,5 / 3,70×0,75×2,71 pulgadas ±0,02

Peso:61 g / 2,15 oz

Par de apriete de los terminales de tornillo:0,4 Nm (3,54 lbf·in)

Tamaño del conductor:0,5–2,5 mm² (20–14 AWG, conector verde); 0,5–1,5 mm² (20–16 AWG, conectores azules); se admiten casquillos sólidos, trenzados y de cordón.

Longitud de la tira:6–7 mm (0,24–0,28 pulg., conector verde); 5–6 mm (0,20–0,24 pulg., conectores azules)

Montaje:carril DIN

Material de la carcasa:Plástico

Color de la carcasa:Amarillo

Ambiental

Temperatura ambiente:−20 °C a 40 °C (−5 °F a 105 °F)

Humedad:30–70% de humedad relativa

Altitud máxima:2000 m (6562 pies)

Eléctrico

Fuente de alimentación:12–24 VCC

Consumo de energía:< 1,5 W

Protección externa:16 A, característica de disparo B o C; clasificación de interrupción de 6 kA; clase de limitación de energía 3

Clasificaciones de salida

Tensión máxima de conmutación:24 VCC

Corriente máxima de conmutación:16 A

Corriente máxima de control:16 A en total; 6 A por canal

Gama CCT

Rango de temperatura de color:2700 K – 6500 K (predeterminado); configurable entre 1000 K y 10000 K

Sensores y medidores

Voltímetro (CC):12–24 V ±10 %

Precisión del voltímetro:±5 % (12–24 V CC)

Amperímetro (CC):0–5 A ±10 %

Precisión del amperímetro:±5 %

Medidores de potencia y energía:Potencia activa y aparente; energía activa y aparente; factor de potencia; energía activa fundamental y reactiva fundamental

Almacenamiento de datos de medición:No

Sensor de temperatura interna:Sí

Radio

Protocolo Wi-Fi:802.11b/g/n

Banda RF de Wi-Fi:2401–2495 MHz

Potencia máxima de RF de Wi-Fi:<20 dBm

Alcance de Wi-Fi:Hasta 30 m/100 pies en interiores; 50 m/160 pies en exteriores (depende de las condiciones)

Protocolo Bluetooth:4.2

Banda RF de Bluetooth:2400–2483,5 MHz

Potencia máxima de RF de Bluetooth:< 4 dBm

Alcance de Bluetooth:Hasta 10 m/33 pies en interiores; 30 m/100 pies en exteriores (depende de las condiciones)

MCU

UPC:ESP32-D0WDQ6

Frecuencia de reloj:40 MHz

Destello:8 MB

Capacidades del firmware

Horarios:20

Webhooks:20 (hasta 5 URL cada una)

Scripting:Sí

MQTT:Sí

Cifrado:Sí

Horarios avanzados:Sí

KVS (almacén de clave-valor):Sí
