Device identification

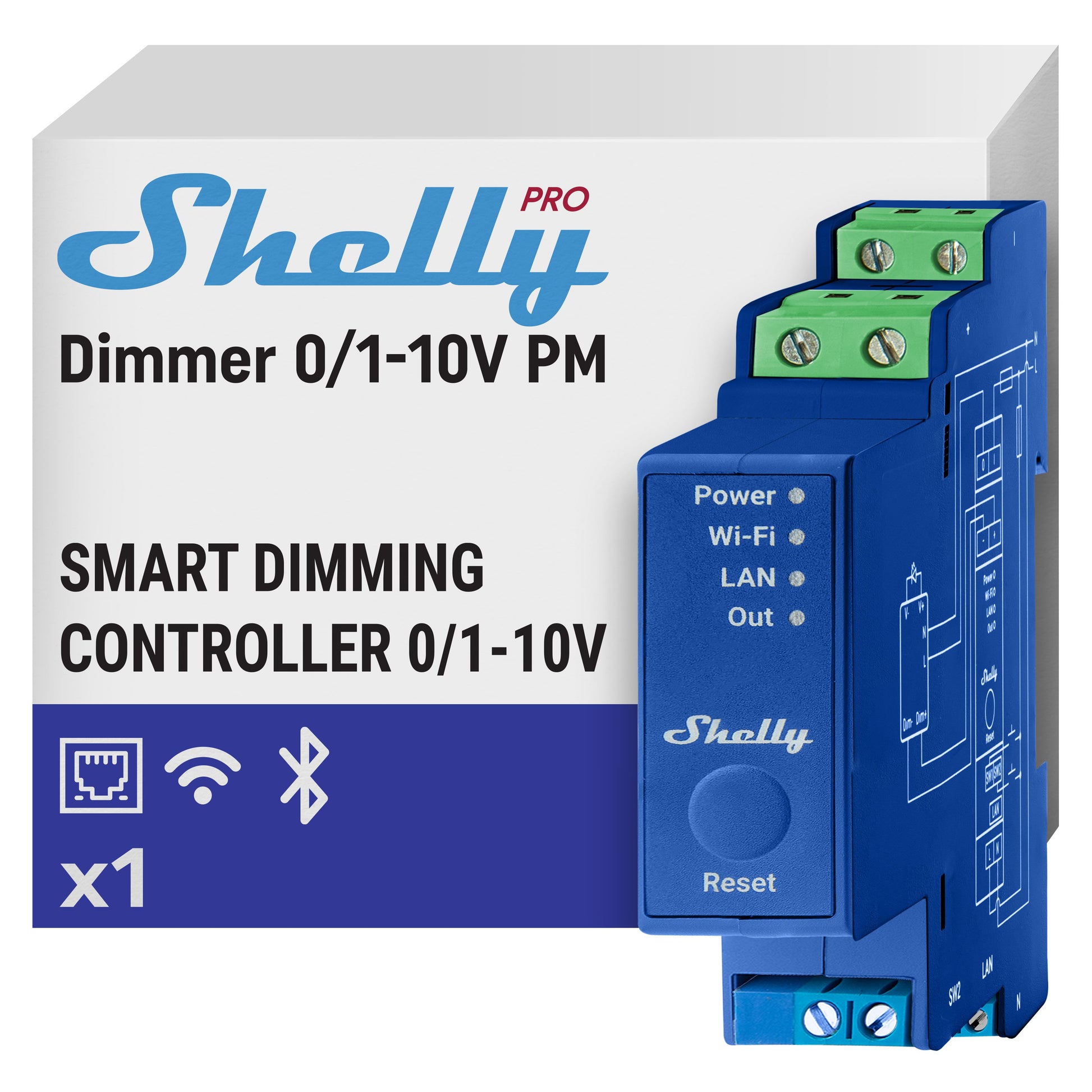

Name: Shelly Pro Dimmer 0/1-10V PM

Model: SPCC-001PE10EU

Device SSID: ShellyPro0110PM-XXXXXXXXXXXX

BLE Model ID: 0x2011

Short description

Shelly Pro Dimmer 0/1-10V PM is a DIN-mountable dimming controller for remote control of 0–10 V and 1–10 V drivers via phone, tablet, PC, or home automation system. It can operate standalone on local Wi-Fi or through cloud services. The device is a current-sourcing controller and supports both 0–10 V and 1–10 V driver types.

Main features

• DIN rail mountable
• Power measurement for precise energy monitoring
• Bluetooth connectivity
• BLE Gateway between BLE and Wi-Fi devices
• Wi-Fi connectivity
• Wi-Fi range extender
• Ethernet connectivity
• Scripting for custom automations
• Basic Schedules (weekly): brightness, transition duration, flip value
• Advanced Schedules (year-round): second-to-month timing, brightness, transition, flip value
• Auto on/off timers
• Local actions on LAN (brightness, transition, flip value)
• Webhooks for event-driven integrations
• High compatibility with third-party systems, including KNX
• No hub required (use locally or via Shelly Smart Control/third-party)
• Activity log with detailed event history
• KVS (key-value storage) for persistent data
• KNXnet/IP communication
• Safety: over current/voltage/power protections
• Virtual and BTHome components (user-created virtual entities)
• Diverse driver integration: 0–10 V and 1–10 V drivers (lights, motors, valves)
• Night Mode for reduced brightness at night
• Switch/Button input modes: one-button and dual-button dimming
• Transition duration control
• Minimum brightness on toggle On
• Min/Max brightness range limiting
• Button fade rate (default 3×)
• Button presets on double-push (default 100%)

At 0% brightness in both 0–10 V and 1–10 V modes, no light is emitted and the relay is off. In the web interface and Shelly Smart Control app the light may appear “on” because no explicit off action is performed.

Use cases

• Adjust brightness of 0–10 V dimmable lights
• Create schedules to auto-adjust brightness throughout the day

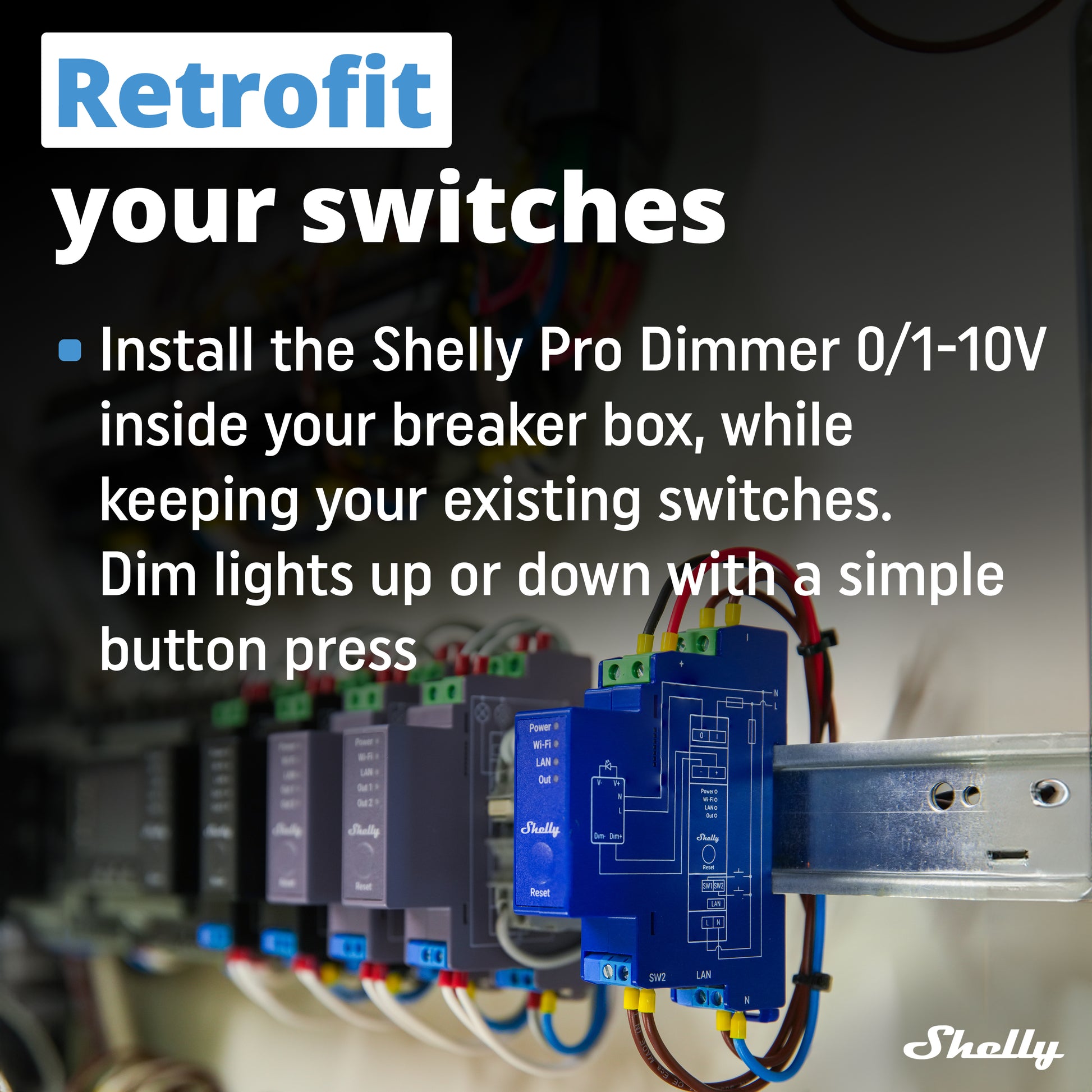

• Retrofit existing lighting and keep current wall switches
• Sync lighting with sunrise/sunset using schedules
• Enable Night Mode for low nighttime levels
• Integrate with third-party platforms (Home Assistant, Google Home, Alexa, SmartThings)
• Single or double button press to dim up/down
• Monitor and measure power usage for energy management

Integrations

Amazon Alexa supported capabilities: Yes

Google Smart Home supported traits: Yes

Samsung SmartThings supported capabilities: Yes

Simplified internal schematics

Pro Dimmer 0_1-10V PM-internal-schematics.png

Device electrical interfaces

Inputs: 2 switch/button inputs (S1, S2); 2 power supply inputs (1 N, 1 L); 1 relay input with power measurement

Outputs: 2× 0–10 V outputs (+, −); 1 relay output with power measurement

Connectivity

Wi-Fi

Ethernet

Bluetooth

Safety function

Overheating protection

Overvoltage protection

Overcurrent protection

Overpower protection

Supported load types

• 0–10 V signal control (lights, motors, valves, etc.)
• 1–10 V signal control

User interface

Inputs: One Reset button

• Hold 5s → enable AP and Bluetooth

• Hold 10s → factory reset

Outputs: LED indication

• Power → Red (on when power supply is connected)

• Wi-Fi → Blue (AP mode)

• Wi-Fi → Red (STA mode, not connected)

• Wi-Fi → Yellow (STA mode, connected; cloud disabled/not connected)

• Wi-Fi → Green (STA mode, connected; cloud enabled)

• Wi-Fi → Flashing Red/Blue (OTA update in progress)

• LAN → Green (LAN connected)

• Out → Red (output on)

Físico

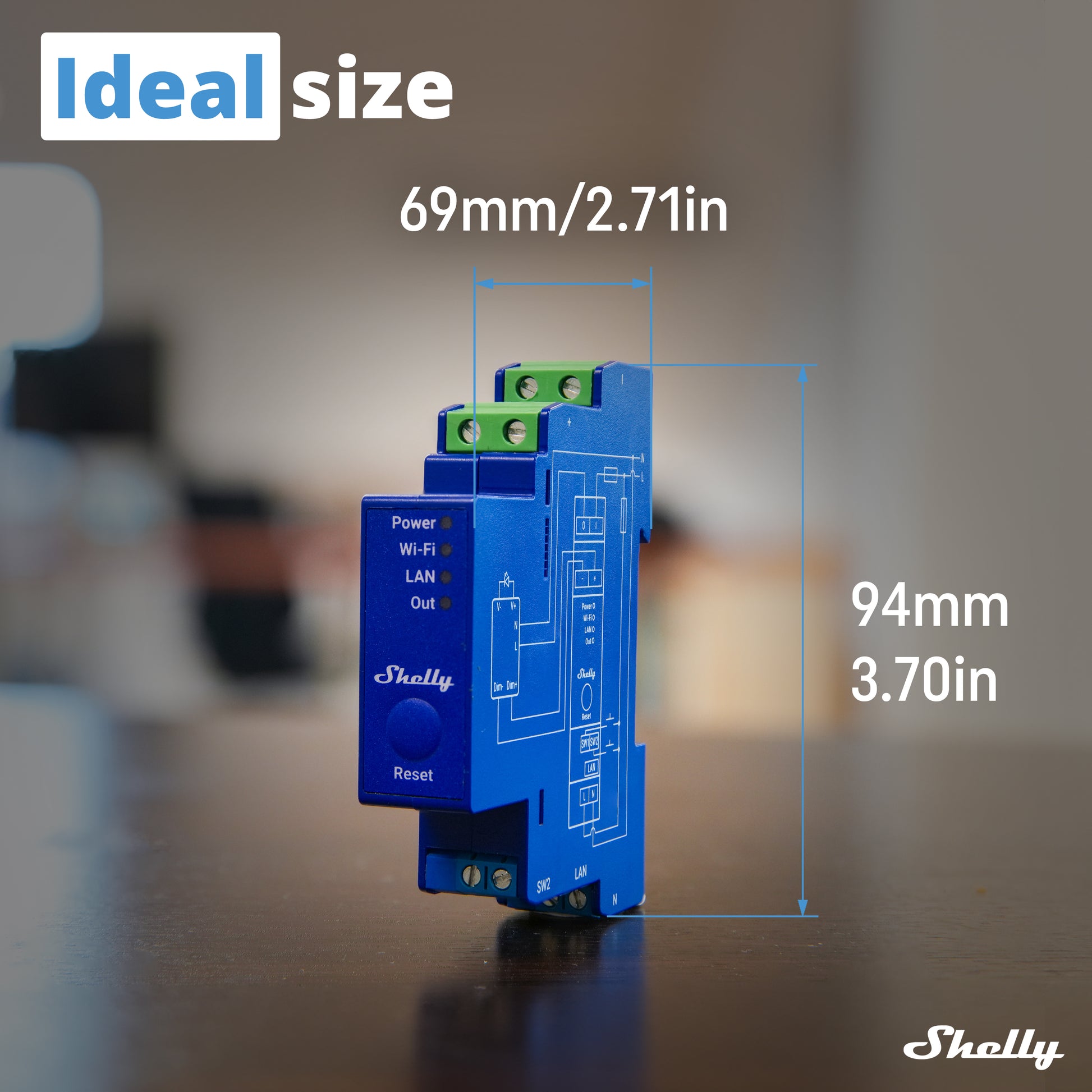

Tamaño (alto x ancho x profundidad):94×19×69 mm ±0,5 / 3,70×0,75×2,71 pulgadas ±0,02

Peso:70 gramos / 2,5 onzas

Par de apriete de los terminales de tornillo:0,4 Nm (3,54 lbf·in)

Tamaño del conductor:0,5–2,5 mm² (20–14 AWG, conectores verdes); 0,5–1,5 mm² (20–16 AWG, conectores azules)

Longitud de la tira:6–7 mm (0,24–0,28 pulg., conector verde); 5–6 mm (0,20–0,24 pulg., conectores azules)

Montaje:ESTRUENDO

Material de la carcasa:Plástico

Color de la carcasa:Azul

Color de los conectores:Verde, Azul

Ambiental

Temperatura ambiente:−20 °C a 40 °C (−5 °F a 105 °F)

Humedad:30–70% de humedad relativa

Altitud máxima:2000 m (6562 pies)

Eléctrico

Fuente de alimentación:110–240 V~

Consumo de energía:< 3 W

Se requiere neutralidad:No

Tipo de control 0–10 V / 1–10 V:Abastecimiento actual

Protección externa:16 A, característica de disparo B o C; clasificación de interrupción de 6 kA; clase de limitación de energía 3

Clasificaciones de salida

Tensión máxima de conmutación:240 V~

Corriente máxima de conmutación:16 A

Sensores y medidores

Voltímetro (CA):Sí

Amperímetro (CA):Sí

Medidores de potencia y energía:Potencia activa y aparente; energía activa y aparente; factor de potencia; energía activa fundamental y reactiva fundamental

Almacenamiento de datos de medición:No

Sensor de temperatura interna:Sí

Radio

Protocolo Wi-Fi:802.11b/g/n

Banda RF de Wi-Fi:2412–2472 MHz

Potencia máxima de RF de Wi-Fi:<20 dBm

Alcance de Wi-Fi:Hasta 30 m/100 pies en interiores; 50 m/160 pies en exteriores (depende de las condiciones)

Protocolo Bluetooth:4.2

Banda RF de Bluetooth:2402–2480 MHz

Potencia máxima de RF de Bluetooth:< 4 dBm

Alcance de Bluetooth:Hasta 10 m/33 pies en interiores; 30 m/100 pies en exteriores (depende de las condiciones)

MCU

UPC:ESP32-D0WDQ6

Frecuencia de reloj:40 MHz

Destello:8 MB

Capacidades del firmware

Horarios:20

Webhooks:20 (hasta 5 URL cada una)

Scripting:Sí

MQTT:Sí

Horarios avanzados:Sí

KVS (almacén de clave-valor):Sí
