Detector de inundaciones Shelly (paquete de 1)

Device identification

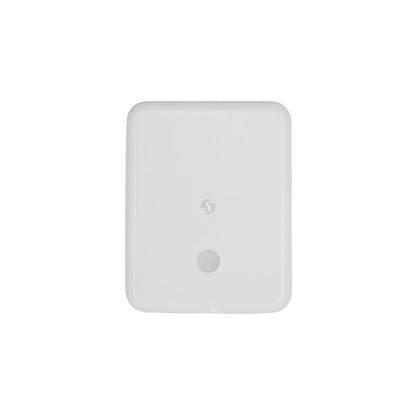

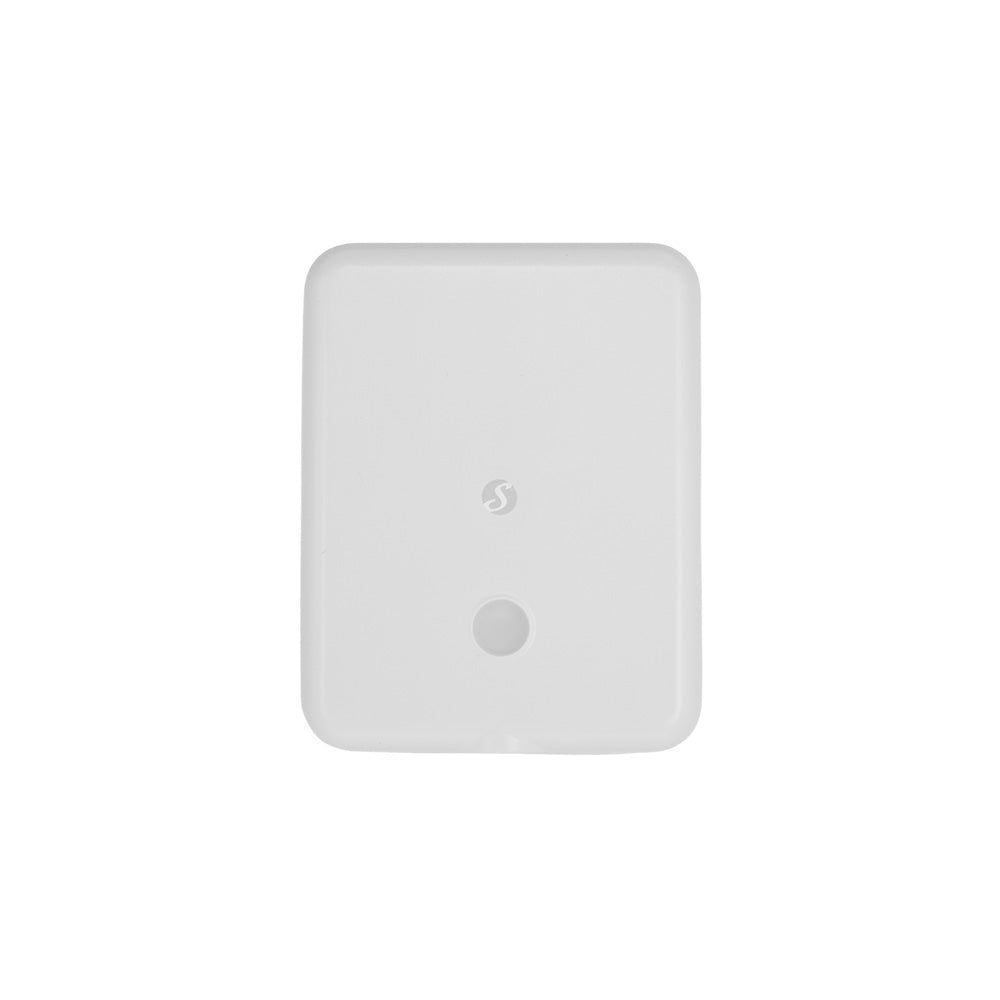

Name: Shelly Flood Gen4

Model: S4SN-0071A

Device SSID: ShellyFloodG4-XXXXXXXXXXXX

BLE Model ID: 0x1822

Short description

Shelly Flood Gen4 is a smart leak detection sensor that alerts you immediately when water is detected where it
shouldn’t be—under appliances, sinks, or along pipes. Featuring an innovative extendable leak sensor cable that
covers large areas (up to 150 m), it ensures wide protection against flooding. The device provides instant
notifications, local buzzer alerts, and supports multiple connectivity options (Wi-Fi, Zigbee, Bluetooth, and Matter).
Its IP44-rated housing ensures reliable operation even in humid environments.

Main features

• Leak detection for small or large areas via extendable sensor cable (up to 150 m)
• Two modes: Flood Detection and Rain Detection
• Three alarm profiles: Intense, Normal, and Economic
• Instant notifications and built-in buzzer alerts
• Battery-powered operation
• IP44 protection for humidity and dust resistance
• Compatible with major automation systems
• Local actions for standalone operation
• Supports Shelly Cloud and Shelly Smart Control app

Use cases

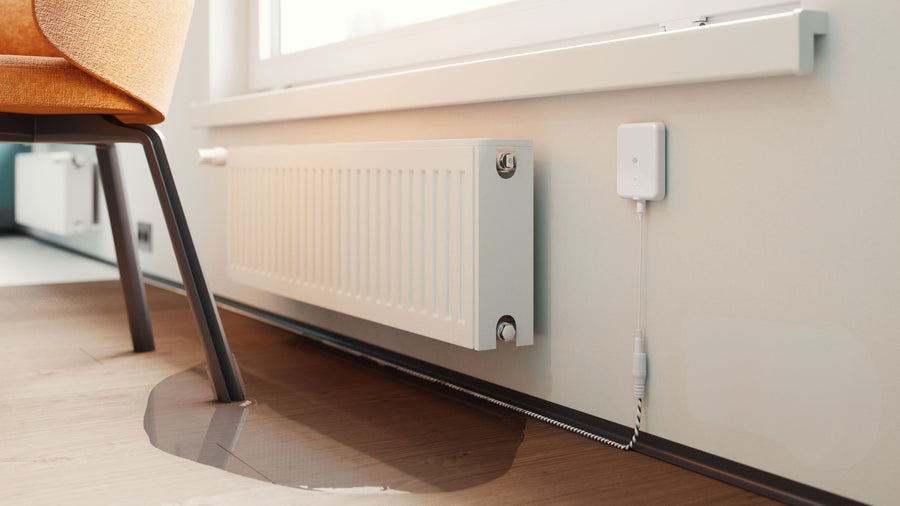

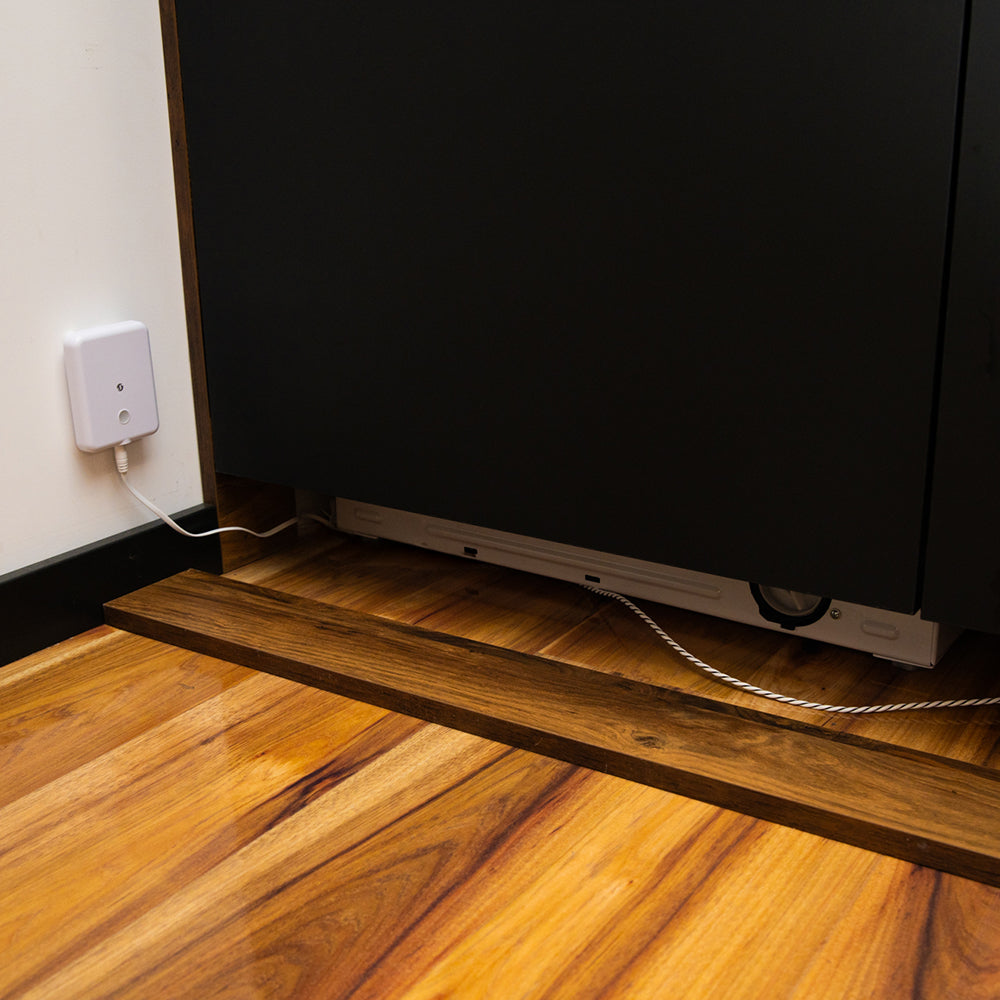

• Immediate flood detection: Receive alerts when water is detected under sinks, appliances, or in basements

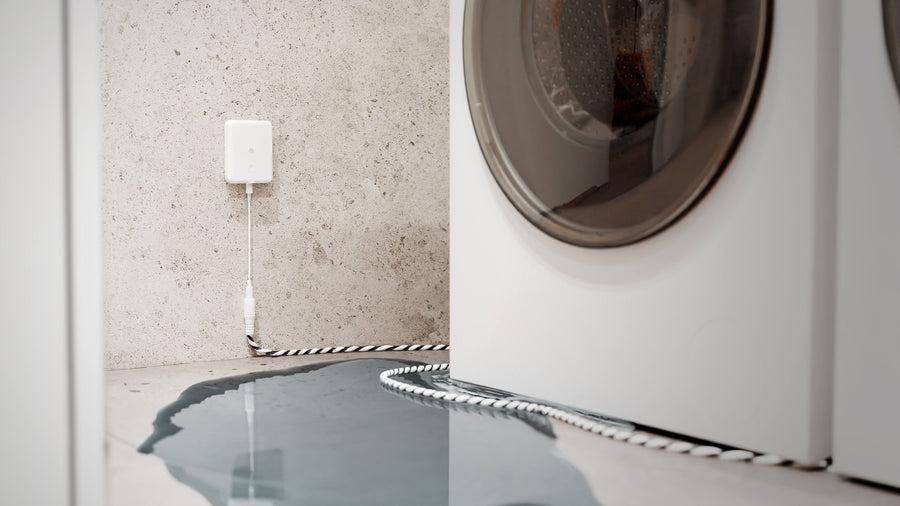

• Home protection: Place near water heaters, dishwashers, or washing machines to prevent damage

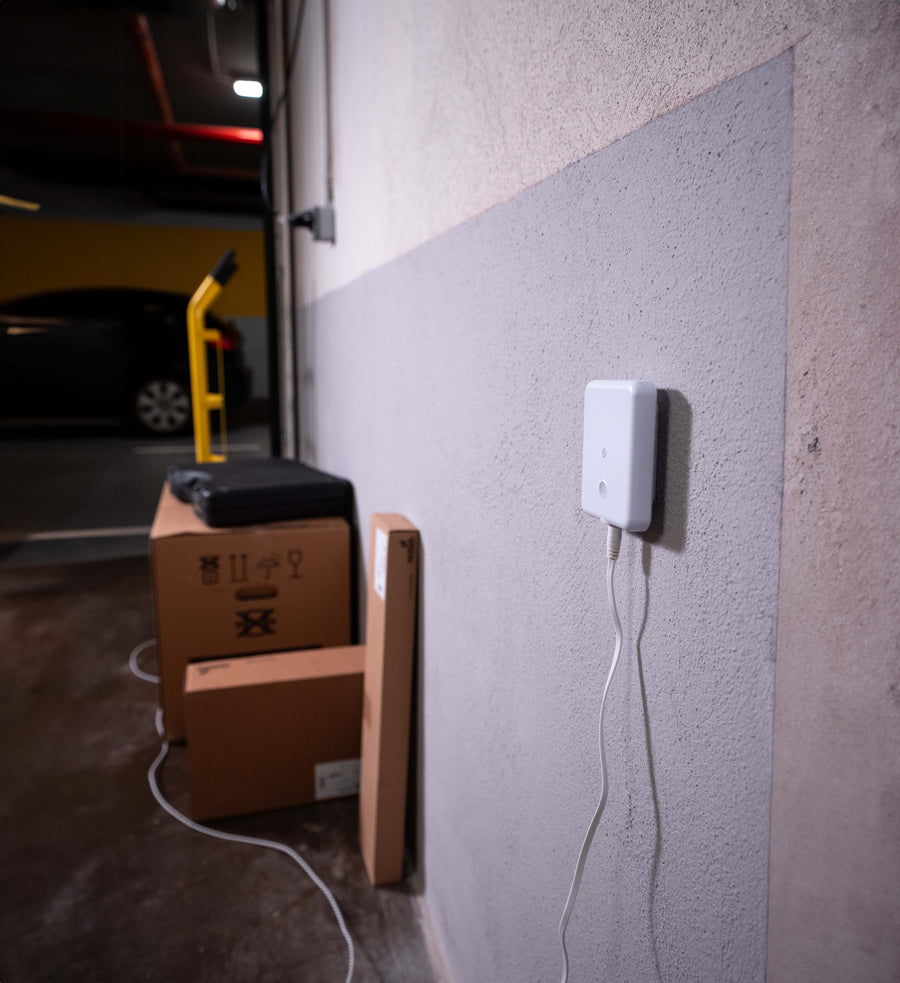

• High-risk area monitoring: Install in kitchens, bathrooms, or laundry rooms for continuous leak detection
• Automatic appliance shutoff: Pair with smart relays to stop water supply when a leak occurs
• Pipe leak detection: Run the cable along pipes to detect moisture early

Main applications

• Residential
• MDU (apartments, condos, hotels)
• Light commercial (offices, retail, restaurants, gas stations)
• Government/municipal
• University/college
• Farming

Integrations

Amazon Alexa supported capabilities: Contact Sensor

Google Smart Home supported traits: Sensor State

Samsung SmartThings supported capabilities: Battery, Water Sensor

Simplified internal schematics


Connectivity

Wi-Fi

Bluetooth

Zigbee

Matter

Accessories

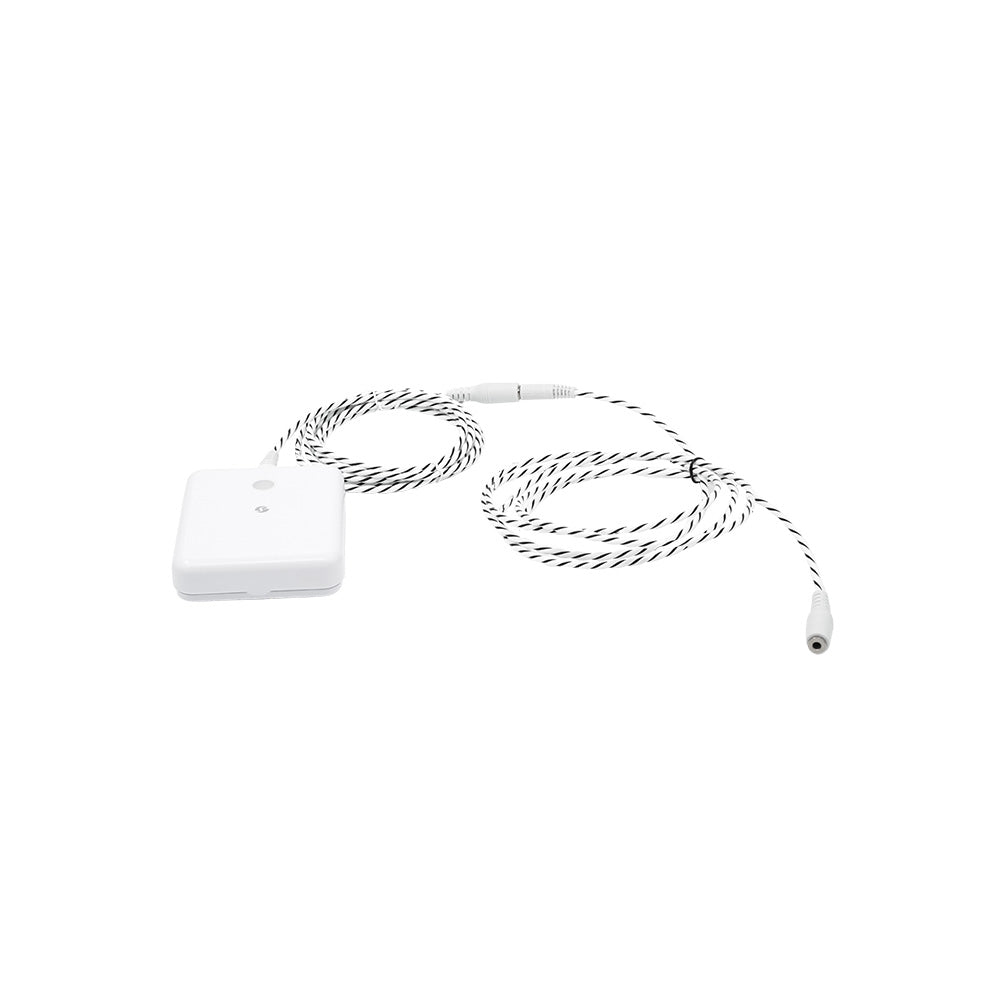

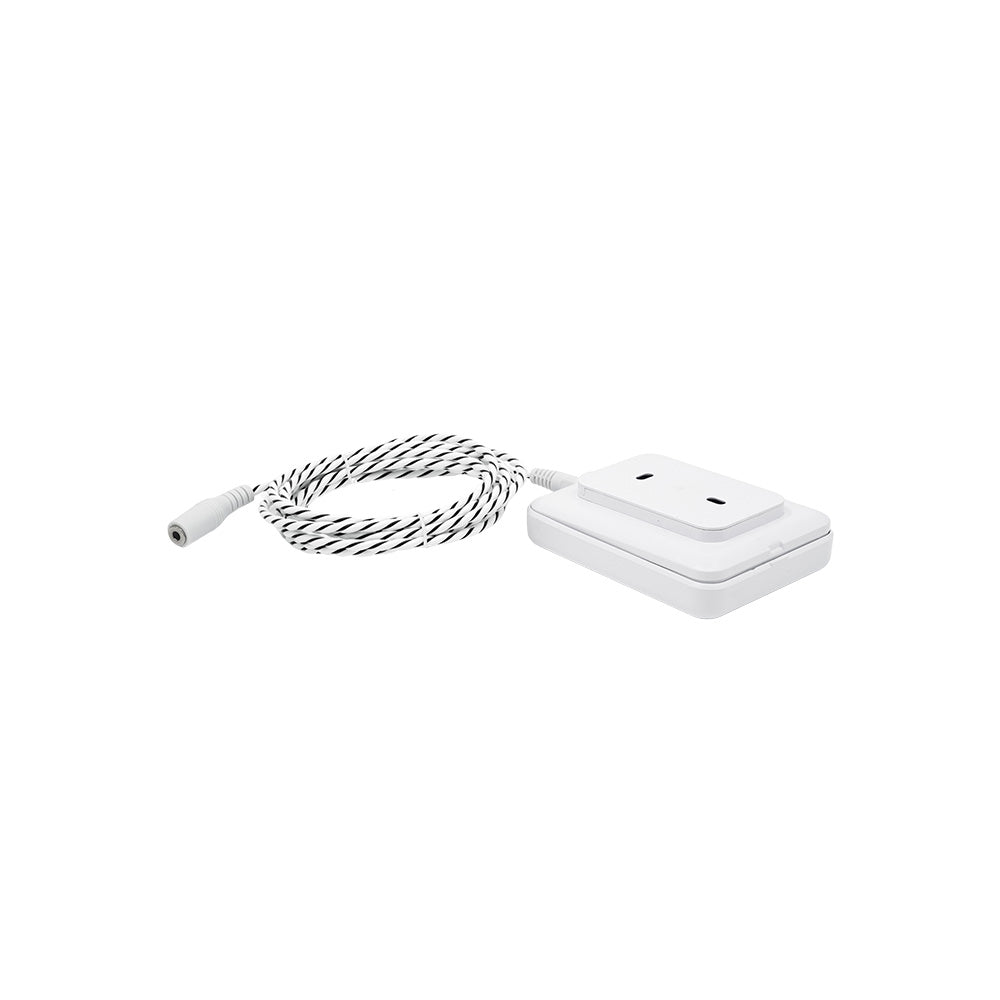

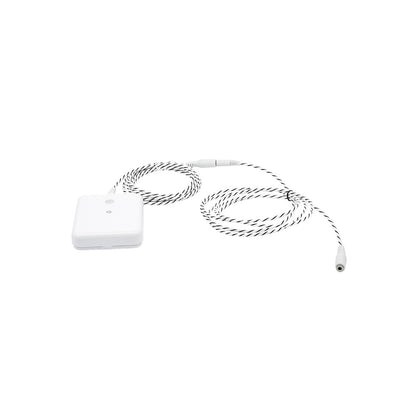

Shelly Leak Sensor Cable – included with Shelly Flood Gen4.
3D-printable cable holders are available for customized installations.

Safety function

Overheating protection

Overvoltage protection

Overcurrent protection

Supported load types

• Not applicable (sensor device)

User interface

Inputs: LED Button

• Press once → wakes device for 3 min, LED on, reports state

• Press once → reports flood component status

• Double-press → sleep mode

• Triple-press → Zigbee inclusion mode (3 min active)

• Press 5× → switch between Matter and Zigbee firmware

• Hold 5 s → network reset (LED flashes slowly; auto-cancels after 3 min)

• Hold 10 s → factory reset

Outputs: Buzzer & LED indications



Buzzer patterns:

• Long beep (3.5 s ON / 1.5 s OFF) → Flood detected

• Short beep (0.3 s ON / 5 s OFF) → Low battery (< 20%)



LED color meanings:

• Blue → AP mode enabled

• Red → STA mode active, not connected to Wi-Fi

• Yellow → Connected to Wi-Fi, Cloud disabled or not connected

• Green → Connected to Wi-Fi and Shelly Cloud

• Flashing Purple → Zigbee commissioning mode

• Flashing Red/Blue → OTA update in progress

• Flashing Yellow → Identification mode (for locating device)

Alarm modes

Flood Detection Mode: Triggers an immediate alarm and notifications when water is detected.


Rain Detection Mode: Reports water presence without triggering an alarm — ideal for non-critical use.

Físico

Tamaño (alto x ancho x profundidad):97×76×25 mm / 3,82×2,99×0,98 pulgadas

Peso:91 g / 3,21 oz (sin pilas); 185 g / 6,53 oz (con pilas)

Montaje:Muro

Material de la carcasa:Plástico

Color de la carcasa:Blanco

Ambiental

Temperatura ambiente:−20 °C a 40 °C (−5 °F a 105 °F)

Humedad:30–70% de humedad relativa

Altitud máxima:2000 m (6562 pies)

Eléctrico

Fuente de alimentación:Baterías

Tipo de batería:4 pilas AA de 1,5 V

Duración estimada de la batería:Aprox. 2 años (depende del tipo de batería, el uso del dispositivo y las condiciones de la red)

Sensores y medidores

Cable del sensor de fugas:2 m, extensible hasta 150 m; se conecta a través del puerto designado

Radio

Protocolo Wi-Fi:802.11 b/g/n/ax

Banda RF de Wi-Fi:2401–2483 MHz

Potencia máxima de RF de Wi-Fi:<20 dBm

Alcance de Wi-Fi:Hasta 30 m/100 pies en interiores; 50 m/160 pies en exteriores (depende de las condiciones)



Protocolo Bluetooth:5 (LE)

Banda RF de Bluetooth:2402–2480 MHz

Potencia máxima de RF de Bluetooth:<20 dBm

Alcance de Bluetooth:Hasta 10 m/33 pies en interiores; 30 m/100 pies en exteriores (depende de las condiciones)



Protocolo Zigbee:802.15.4

Banda de RF Zigbee:2405–2480 MHz

Potencia máxima de RF de Zigbee:<20 dBm

Rango Zigbee:Hasta 100 m/328 pies en interiores; 300 m/984 pies en exteriores (depende de las condiciones)

MCU

UPC:ESP-Shelly-C68F

Destello:8 MB

Capacidades del firmware

Horarios:No

Webhooks:10 (hasta 2 URL cada uno)

Scripting:No

MQTT:Sí

UDP:Sí

KVS (almacén de clave-valor):Sí
